Square D AP304G10 Busway, I-Line I Series, 3 Wire, 400 Amp, Ground, Aluminum

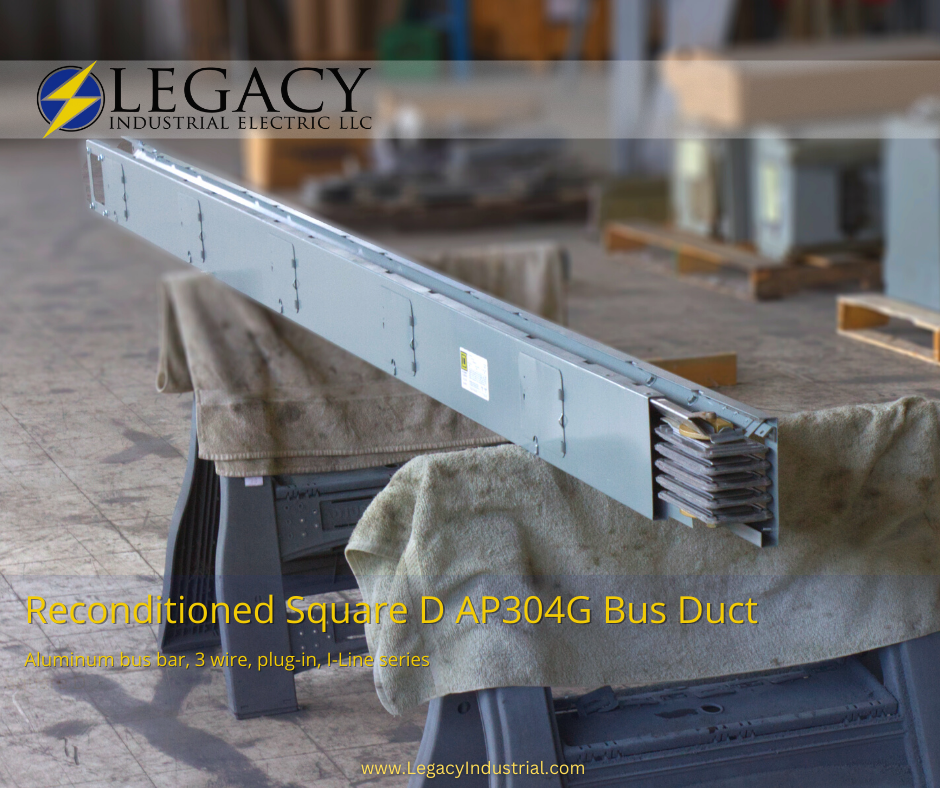

Reconditioned Square D AP304G10 Bus Duct, I-Line Series, 400 Amp, 3-wire, integral ground, plug in, 10 ft section. The busbar is aluminum and rated for indoor use only.

Each 10ft busway section includes:

• (2) Hangers (HP3F)

• (2) Inspection Covers with mounting hardware

• (1) Joint Pack Connector

The AP304G bus duct has 10 plug-in ports, five on each side, for Square D's I-Line series PQ bus plugs.

Link: Square D PQ bus plugs.

Dimensions

Length: 120 inches

Height: 6 inches (side with the bus plugs)

width: 3.38 inches

Shipping

This item requires palletization and ships via freight service.

AP304G Bus Duct System

If you require a full busway configuration including end caps and tap boxes, please give us a call at 248-619-9710 to speak to one of our in house experts. We have a spotlight article on the AP304G busway which provides an overview of an AP304G system.
